Drag and drop direction

Hi Daan,

Not sure if possible but could you provide an image or GIF what you are trying to do? Is it similar to reordering columns in the Software Factory for example?

I did reply to a similar question in the past:

Hope this helps!

Yes here are some images;



I have “Hemathology lab” selected, now I go to the dots on the side and drag LAB on HQ.

The resulting task is;



I just got the correct task once, but that seemed a coincidence. I keep getting the selected task instead of the drop target all the time.

Maybe a bug in 2025.2.12.3.0?

It works if I drag really quick, if I drag slow it becomes the selected item.

Maybe caused by the fact that there is also a form on the screen. I see that the form gets an highlight.

Hi Mark, I looked at your example which uses XML, is it required to use XML to perform a drag and drop?

It seemed that it could just be a task, and I don’t really feel like rebuilding it to XML, without having an actual guideline on what I’m doing.



Hi Daan,

The XML stuff is only needed if you were to drag multiple rows. If you only drag one, no XML required as far as I know.

I'll try and make a simple example to see if I can reproduce the scenario at hand. This will be done with the Universal GUI version 2025.3.12.

Hey Daan, I managed to get it working. I think I do understand why it felt clunky, you have to start dragging from the drag-icon onto a drop-row. Dragging from and dropping onto the drag-icon does not work all the time.

The SF configuration is a lot to explain, but I'll do my best:

Prerequisites:

• Table/View with PK
• Task going to used for drag-drop
• Logic → Task code

Table/View should have a unique PK and a field that is sorted on, typically something called order_no. This order_no is best if it has some gaps in between, like an increment of 10 for example. It will make our logic easier to make.

The Task should have the PK of the table + the (last) PK column of the drop record. This is so we can grab the unique drag record and drop it on the unique drop record.

The Table task binding may be surprising, you only need to bind the PK of the drop record:

 Why is that? Well, we are actually executing the task on the dropped record with additional information from the dragged record. To fill lthe drag_id parameter, we need to go to Subjects > Links > Drag-drop:

And map the drag_id to the correct column of your table:

If you also see Pass as value for the drag column, then it is correct!

One thing I also forgot, you do need to enable the Drag-drop interaction for your table (variant), otherwise it cannot be used.

And enable Default drag-drop enabled in Subjects for your table (variant):

The logic is fairly simple:

Code in text:

-- Get the order no of the drag and drop records
declare @drag_order_no id,
        @drop_order_no id

select @drag_order_no = order_no from grocery_list g where id = @drag_id
select @drop_order_no = order_no from grocery_list g where id = @drop_id

-- Update the order no of the dragged record
---- Place is below the dropped record if the dragged record had a higher order no
---- Place it above the dropped record if the dragged record had a lower order no
update g
set order_no = @drop_order_no + iif(@drag_order_no > @drop_order_no, -1, 1)
from grocery_list g
where g.id = @drag_id

-- Recalculate all record
;with recalc as
(
    select id, order_no, row_number() over(order by g.order_no) * 10 as new_order_no
    from grocery_list g
)
update g
set order_no = g.new_order_no
from recalc g

This should be enough information to recreate this drag-drop example in your application. Like I mentioned ealier, this only works when dragging one row. If you would want to drag multiple, then the XML stuff is required, making it a bit more tricky - you could then refer to the earlier mentioned topic.

Hope this helps!

Hi Mark,

Bedankt voor het lange antwoord.

Volgens mij heb ik alle instellingen correct, toch krijg ik de vaak de key van het geselecteerde record in plaats van het drop record. De logica is zelfs iets eenvoudiger aangezien de bedoeling hier is dat het drop record de nieuwe parent wordt.

Misschien kan je in de reproductie 2 dingen proberen, 1 een tree view in plaats van een lijst, en 2 een form op de zelfde pagina.

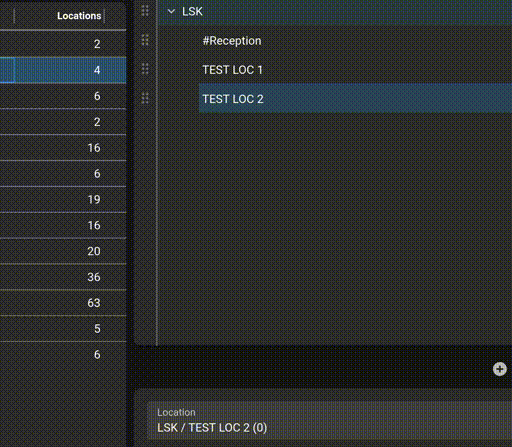

Bij mij werkt het echt niet, hij blijft reception als drop target nemen. Verschil is wel dat ik op versie 2025.2.12.3.0 zit.

Hey Daan,

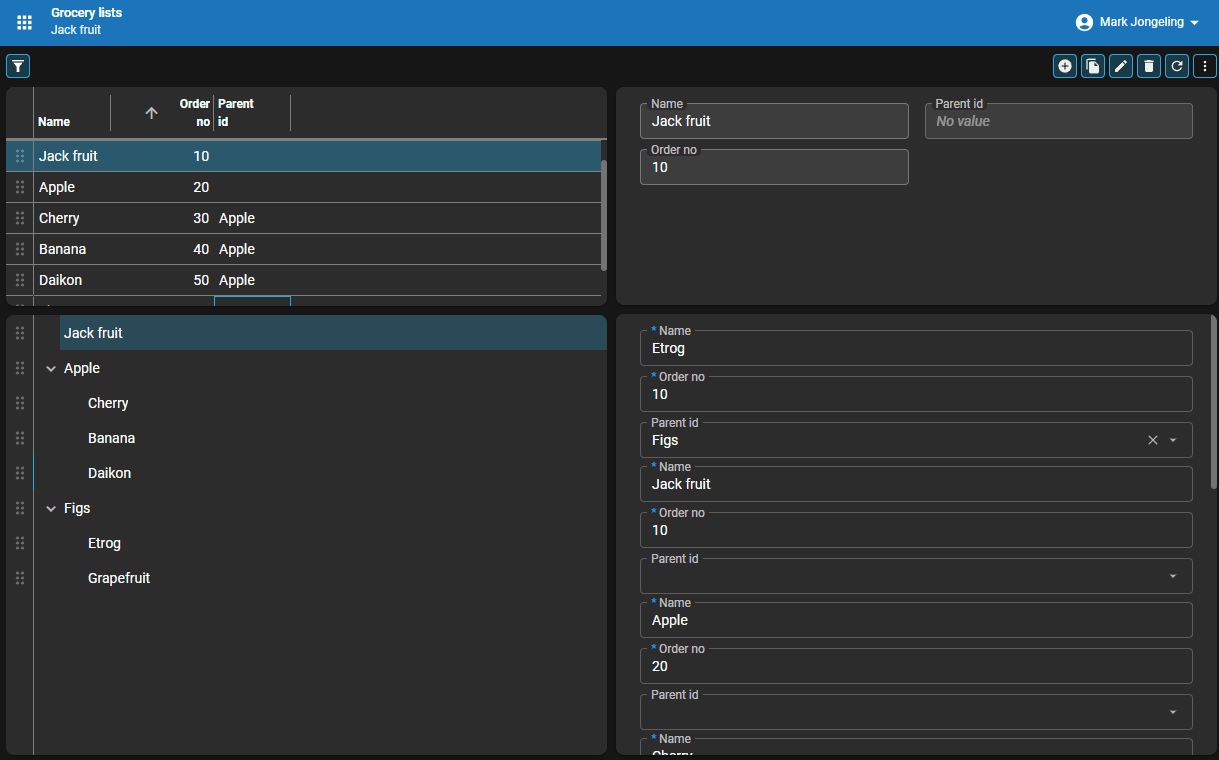

That is unfortunate. I've tried as well with a tree and form component, but for me it does seem to work flawlessly. Perhaps it did get better in a newer Universal GUI version, can you try the latest version?:
