I am investigating a slow IAM sync and stumbled upon the problem below. We sync our IAM by first syncing to disk and then use the twdeployer to sync the target IAM.



  1. I sync a branch to disk with the task in the SF.
  2. I open the file MODEL_SYNC.sql and copy the varbinary of sync_col for example
  3. I convert the varbinary with convert(xml, decompress( sync_data)) to take a look at the xml
  4. If i look at the xml there no nodes for model_id and branch_id in the XML (which could be logical as the sync file has been generated for a specific model and branch)

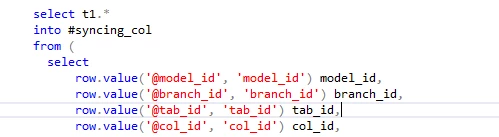

  5. However the procedure sync_col on the IAM databse expects model_id and branch_id in the XML. In the temp table model_id and branch_id are now NULL because they are not in the XML.

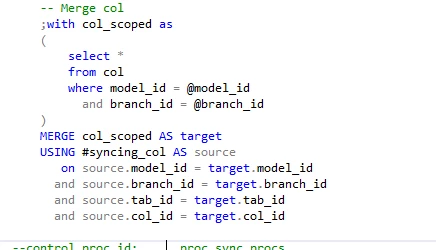

  6. And then in the merge
  7. So as no match can be made because model_id and branch_id are NULL all rows are inserted from the temp table and all the old rows are deleted.

Is the above correct? Or am i missing a setting that causes the model_id and branch_id not be included in the XML.

Hi Ling Wu,

Very well spotted! That is indeed a problem that was overlooked. The given @model_id and @branch_id in the Procedure parameters should match the ones stored in the table (col in this case)

The XML indeed does not include any model_id and branch_id due to the ability of syncing under a different name. This is a flaw on our part sadly.

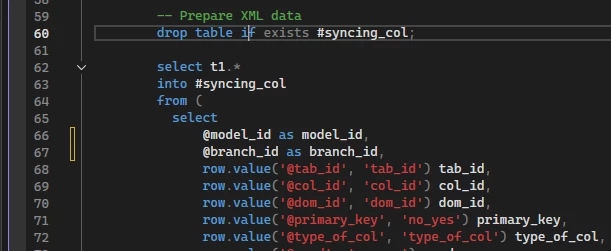

It should be like this:

Revised

Could you create a ticket for this in TCP? We'll make sure to resolve this for the upcoming 2025.3 release.

Edit: Even with this flaw, all the data synchronized to IAM does arrive correctly in the tables. So nothing to worry about.
